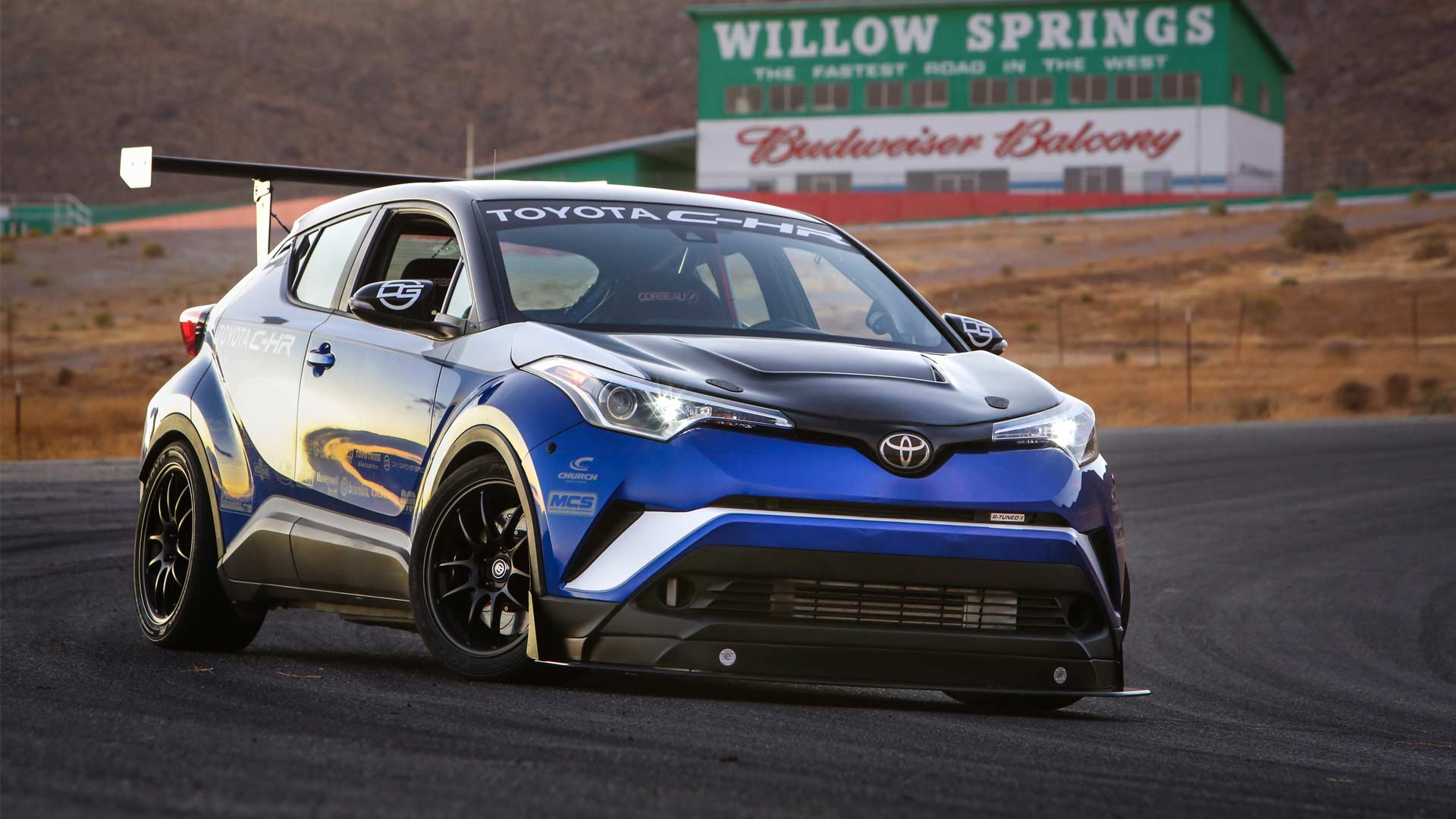

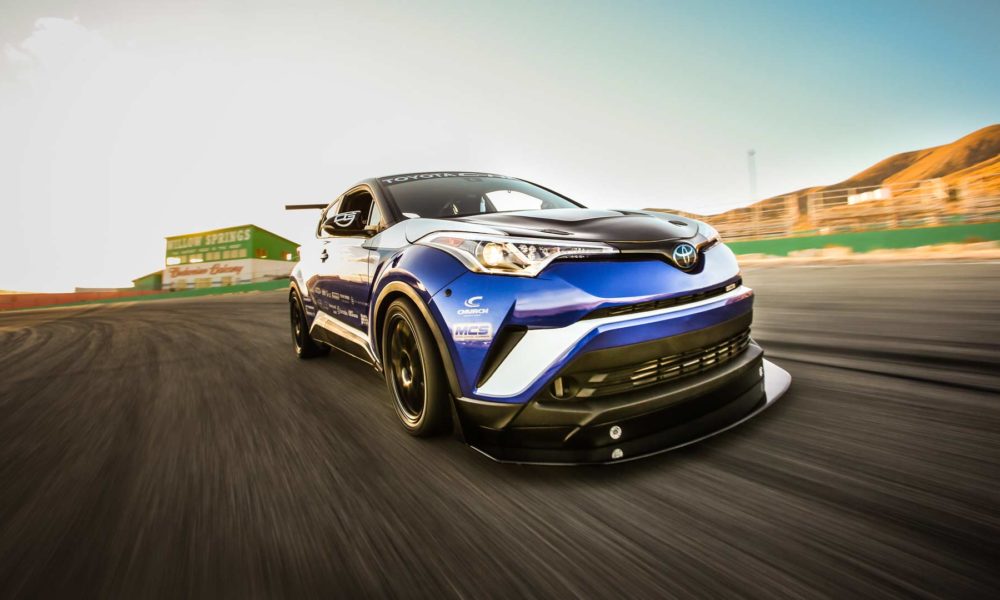

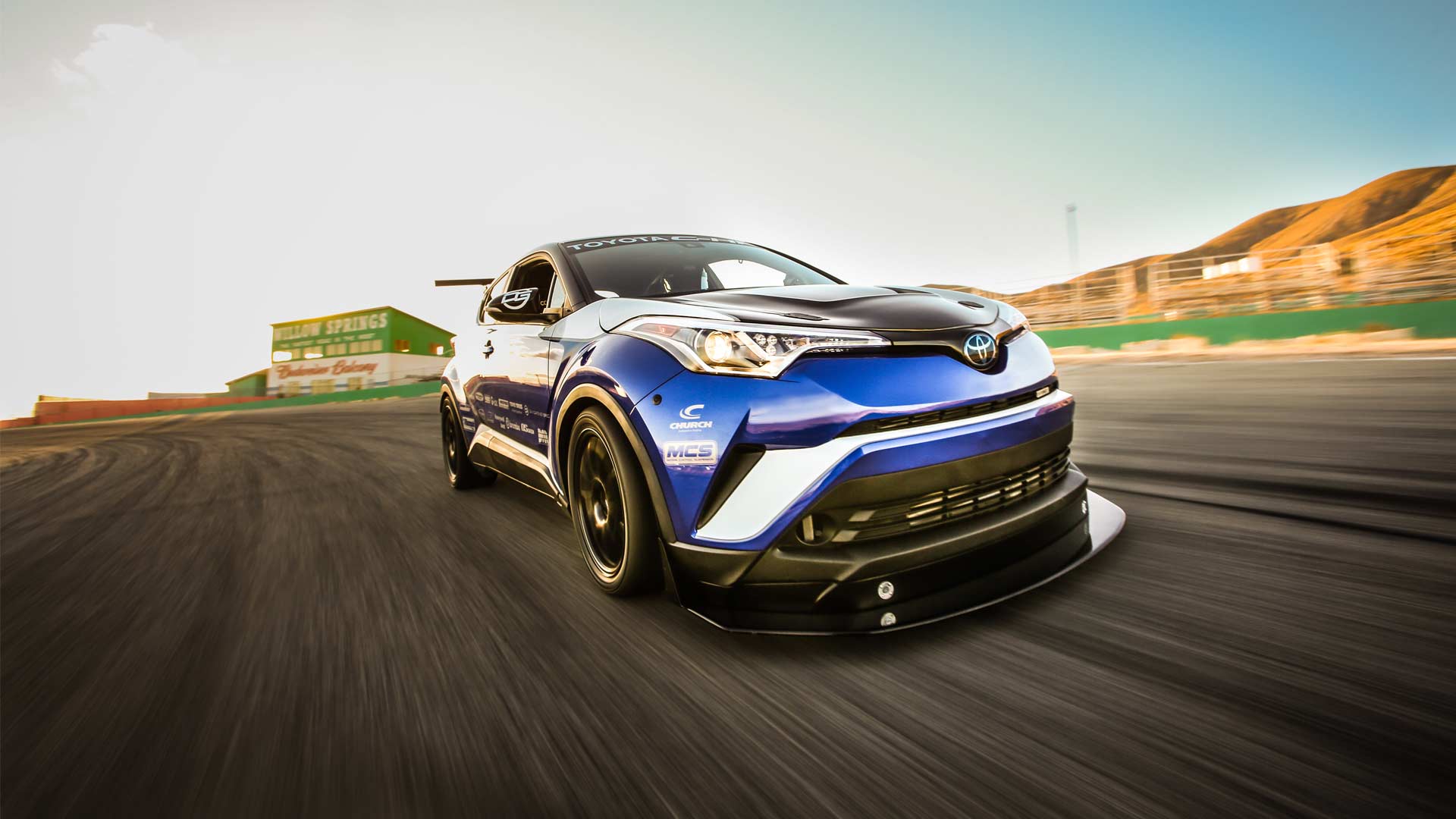

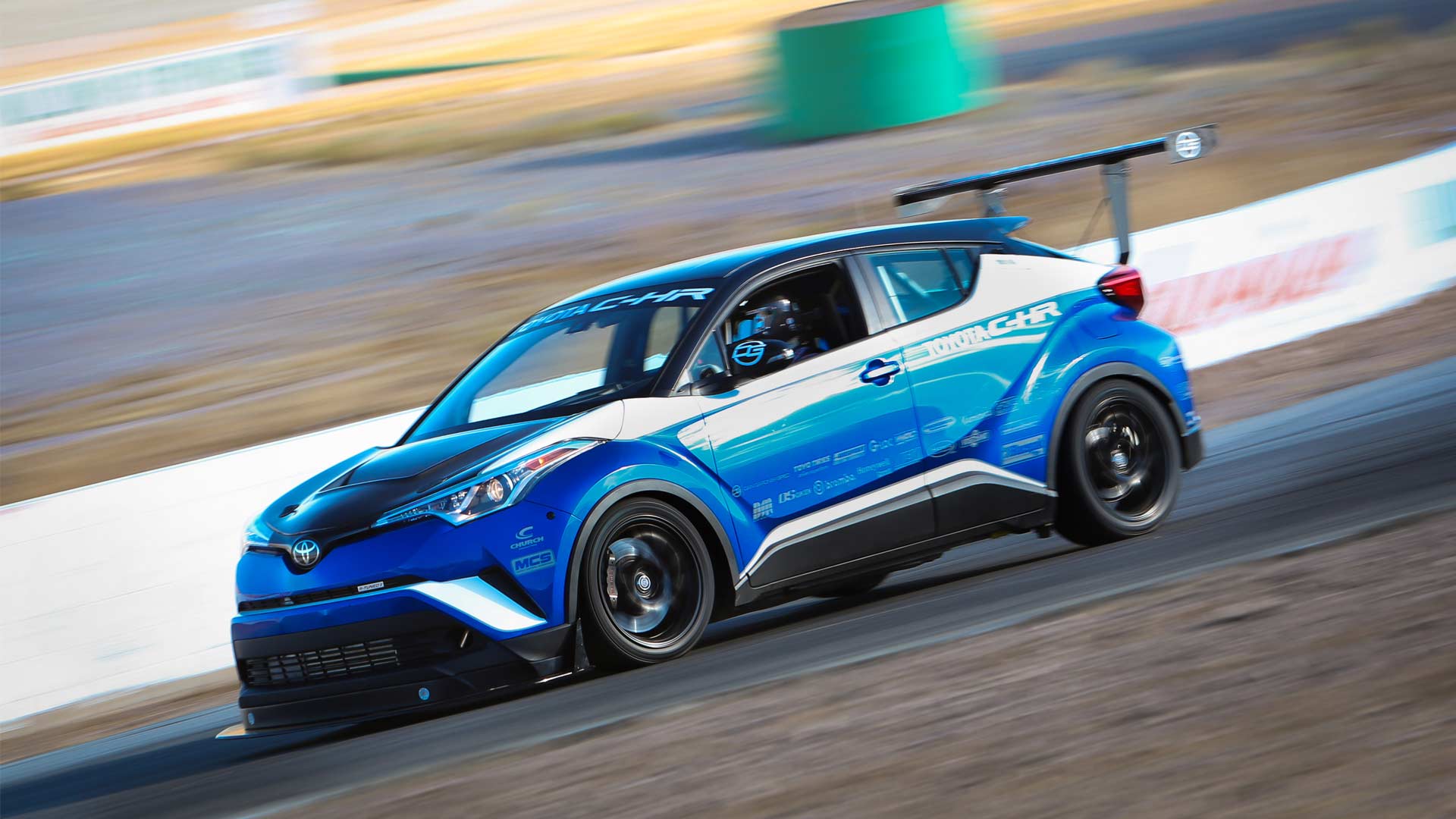

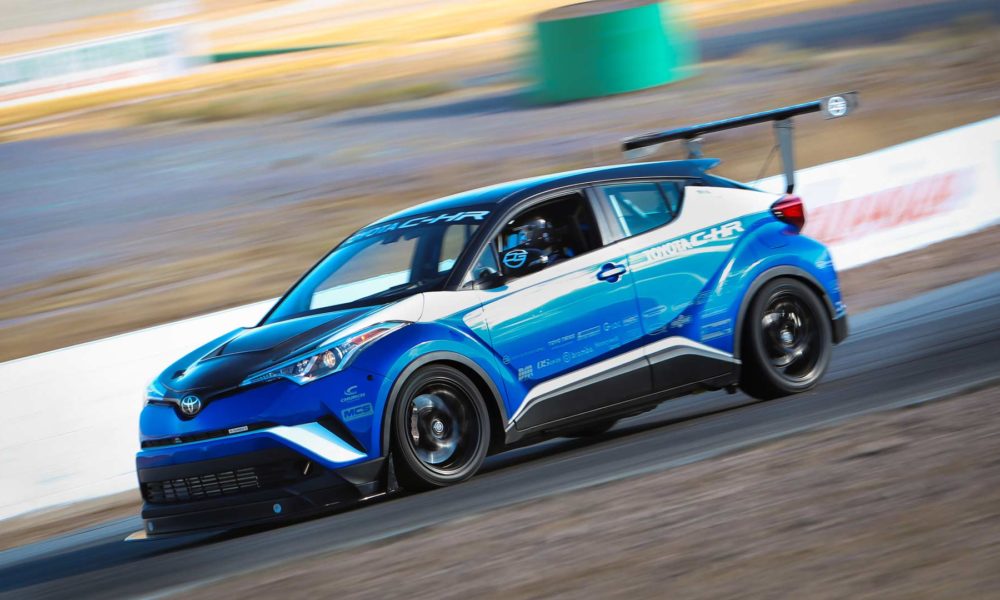

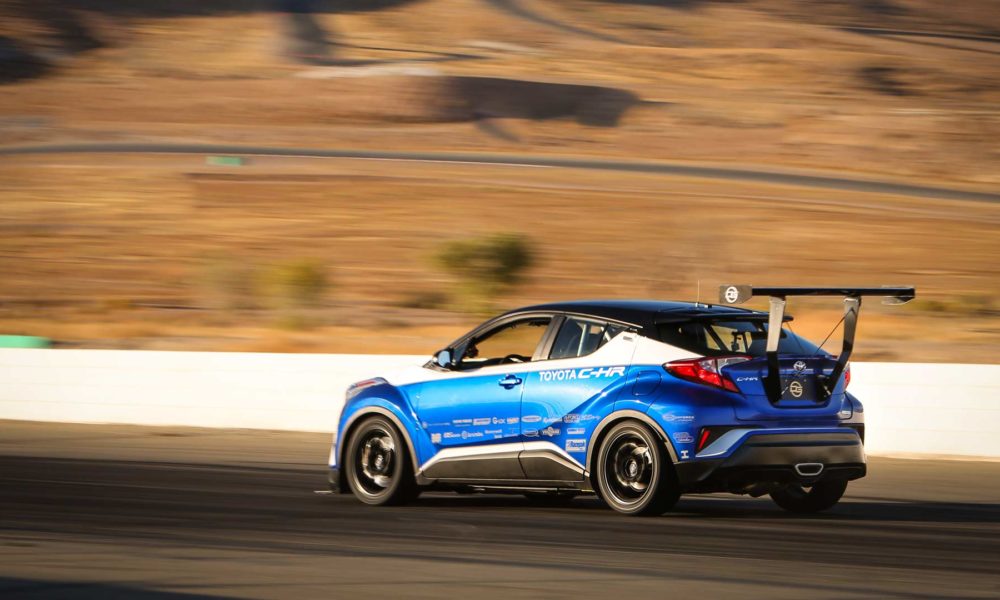

Toyota C-HR R-Tuned to 600 hp for SEMA Show

Toyota-C-HR-R-Tuned-SEMA-2017_3
  • Toyota-C-HR-R-Tuned-SEMA-2017
  • Toyota-C-HR-R-Tuned-SEMA-2017_2
  • Toyota-C-HR-R-Tuned-SEMA-2017_4
  • Toyota-C-HR-R-Tuned-SEMA-2017_5
  • Toyota-C-HR-R-Tuned-SEMA-2017_6
  • Toyota-C-HR-R-Tuned-SEMA-2017_3
  • Toyota-C-HR-R-Tuned-SEMA-2017
  • Toyota-C-HR-R-Tuned-SEMA-2017_2
  • Toyota-C-HR-R-Tuned-SEMA-2017_4
  • Toyota-C-HR-R-Tuned-SEMA-2017_5
  • Toyota-C-HR-R-Tuned-SEMA-2017_6
  • Toyota-C-HR-R-Tuned-SEMA-2017_3

If you were to name a Toyota that can outgun a Porsche or a McLaren, you probably wouldn’t suggest a C-HR. But that’s exactly what a 600 hp race-tuned version of the edgily styled crossover has achieved in against-the-clock testing in the USA, said Toyota.

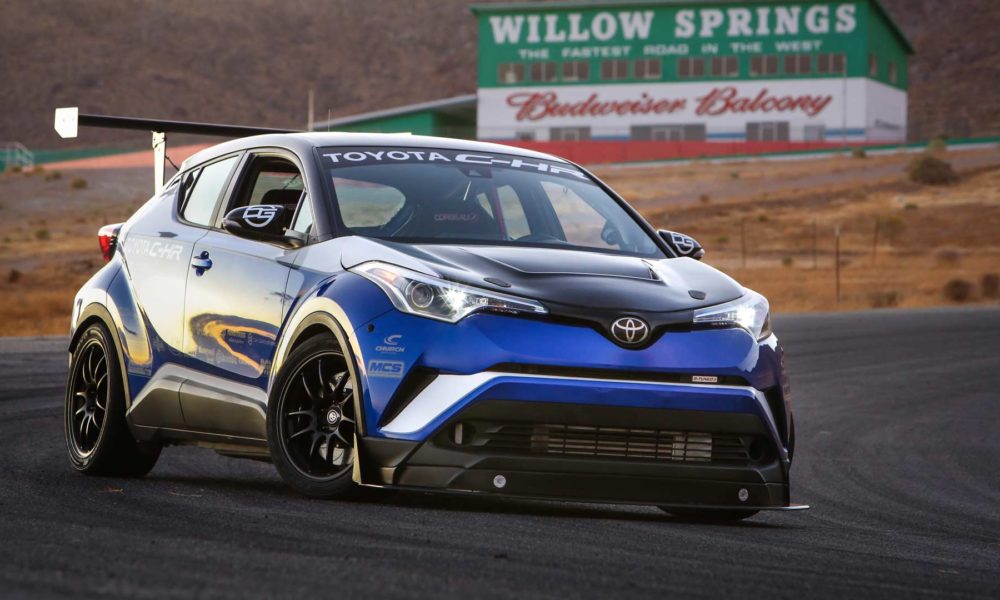

For this year’s SEMA show, the C-HR R-Tuned lapped the 2.5-mile Willow Springs International Raceway in California quicker than five production cars that have been tested there, according to data kept by fastestlaps.com. The hot Toyota’s notable scalps include the McLaren 650 S Spyder, Porsche 911 GT3 and Nissan GT-R NISMO, helping it claim the distinction of being the “world’s fastest crossover”.

The project follows up the Toyota Sienna R-Tuned MPV that was shown at SEMA 2015. The customisation was carried out by Dan Gardner Spec (DG-Spec), with more extreme treatment than the Sienna.

The C-HR R-Tuned is powered by a 2.4-litre, 4-cylinder Toyota 2AZ-FE engine with Dezod forged internals, a titanium and Inconel valvetrain and a custom DG-Spec Garrett turbo system that pushes power output beyond 600 hp at approximately 23 psi of boost.

The unit is mounted to a 5-speed Toyota E-series manual transmission, driving the front wheels with the benefit of an OS Giken limited-slip differential.

Toyota said, the car has not been designed simply to be a straight-line dragster but has been engineered for a superb combination of acceleration, braking and handling. It uses Brembo racing brakes with 14-inch front discs and four-piston aluminium Monobloc callipers and DG-Spec Motion Control Suspension (MCS) motorsports dampers, together with a host of other custom go-fast components.

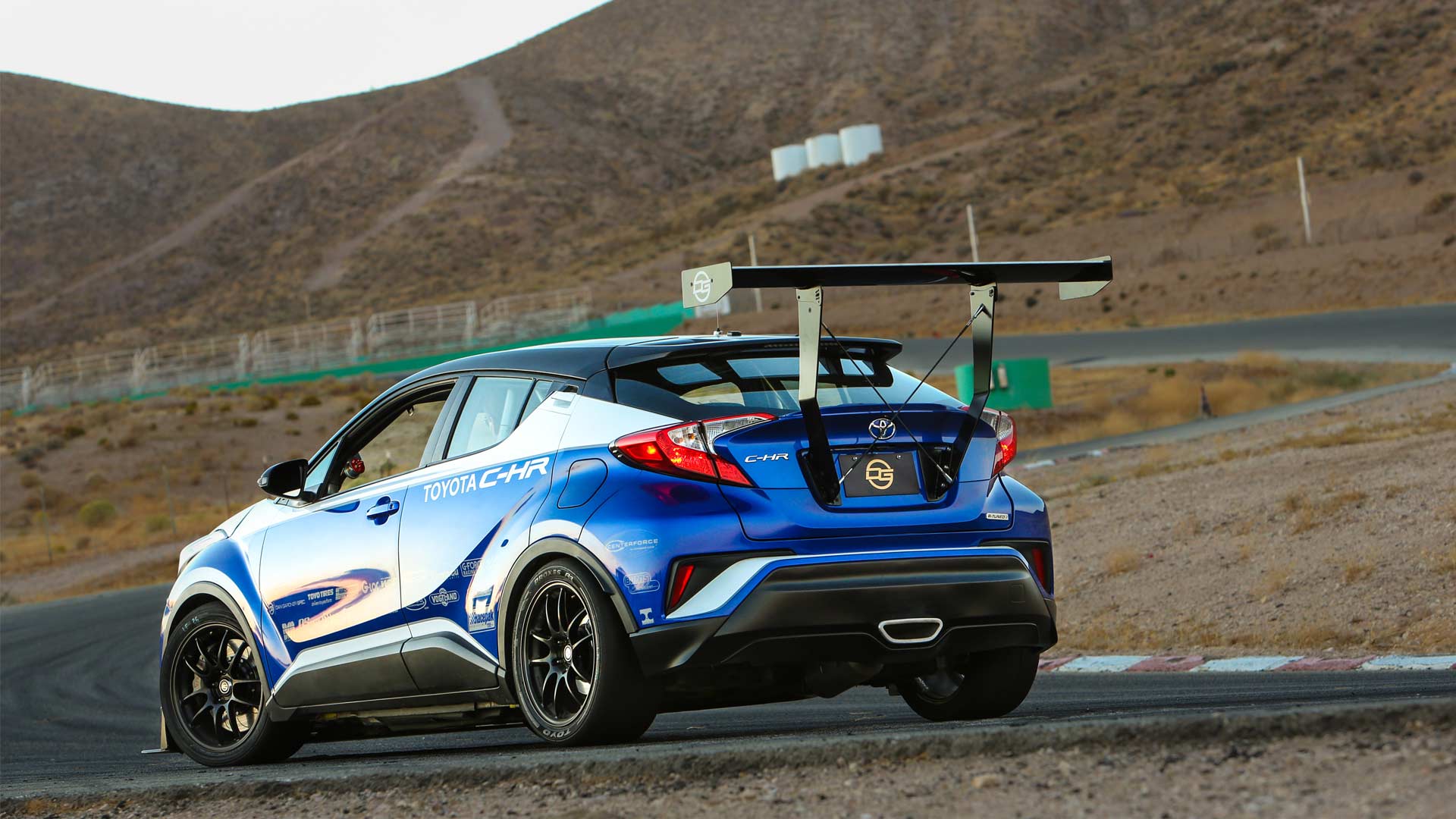

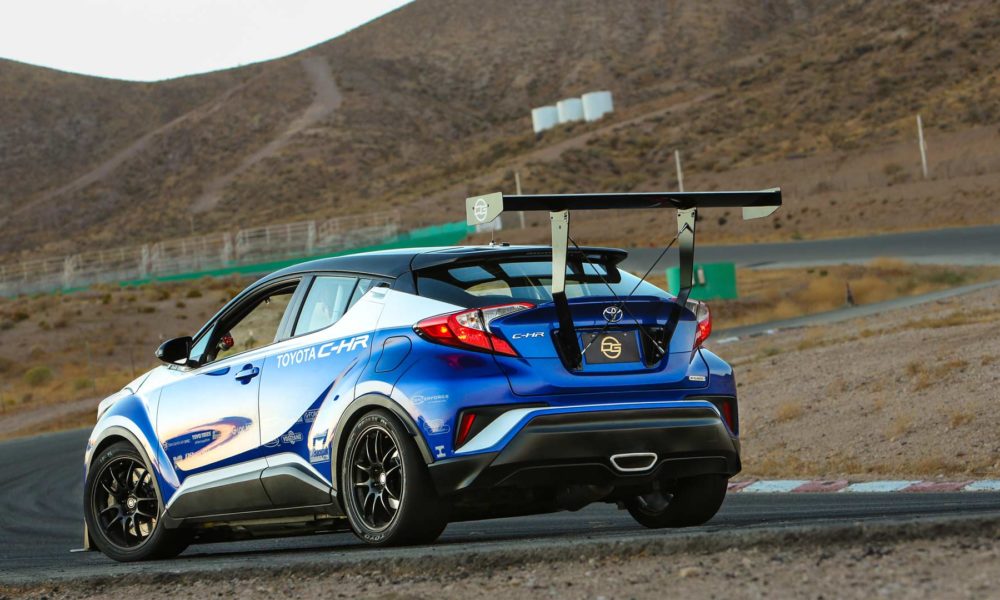

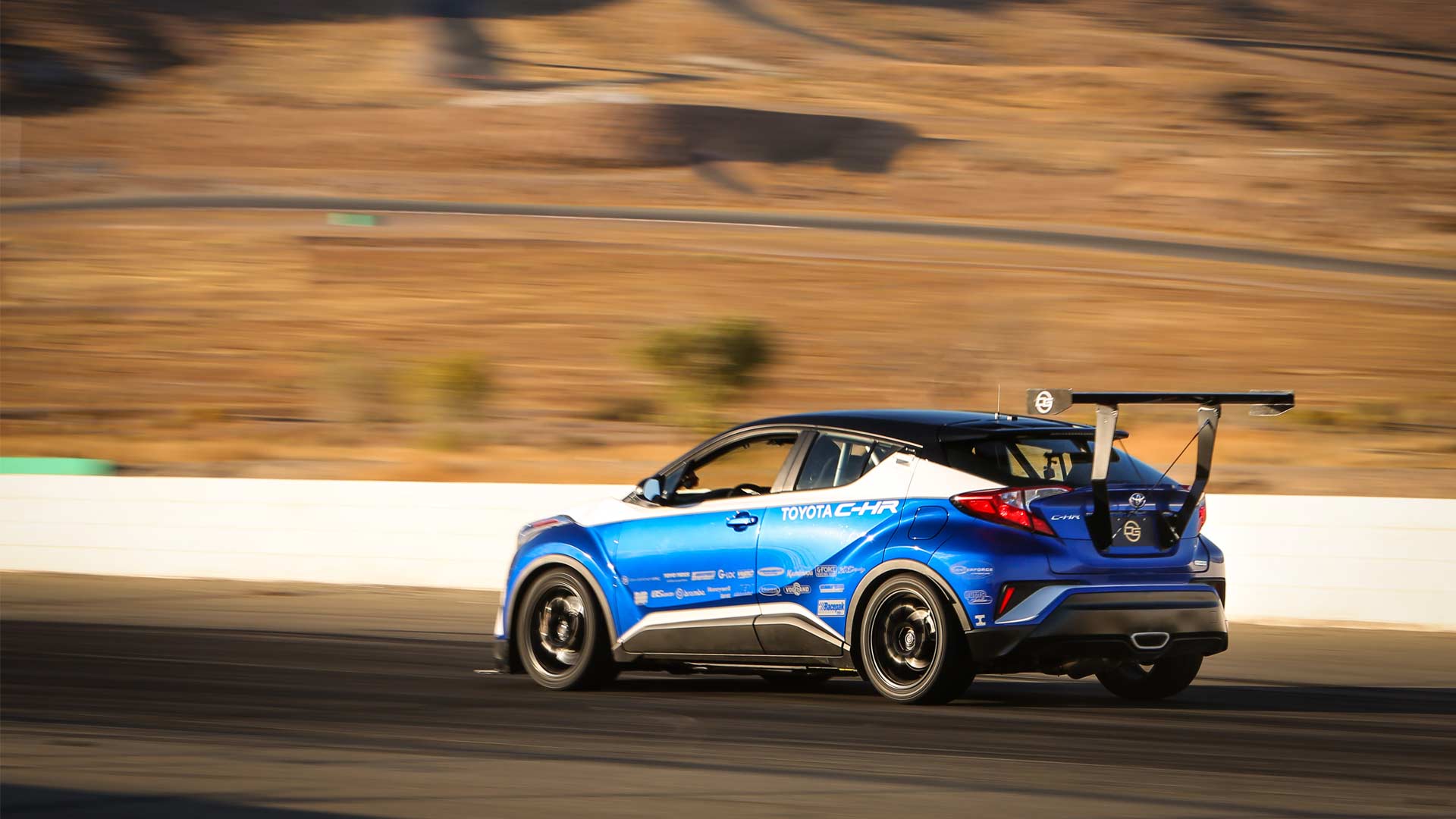

To augment the mechanical grip provided by massive 275/35R18 Toyo Proxes RR tyres, the car is fitted with a front air dam, side skirts, a front splitter and an imposing rear wing with a gurney flap. The result is a 300 lb of downforce at triple-digit speeds.

The interior has been stripped out aft of the front seats and details such as a vented carbon fibre Kaminari bonnet have helped shave hundreds of pounds off the C-HR’s kerb weight. The car underwent shakedown testing at Willow Springs at each stage of the build and performance data was extensively logged. In all, it was track-tested 10 times.
